01
No anchoring
Protects waterproofing layers, historic flooring, rooftop slabs, and finished plaza surfaces.
Freestanding non-invasive court system
The Sovereign Freestanding
A self-supporting engineering system for premium rooftop clubs, luxury resorts, and temporary venues where the original surface must remain protected.
Non-invasive innovation
Stability with limited ground intervention.
The Sovereign Freestanding is engineered around a non-invasive outrigger bracket system that distributes load externally, allowing the court to stand with limited ground intervention when site conditions allow.
02

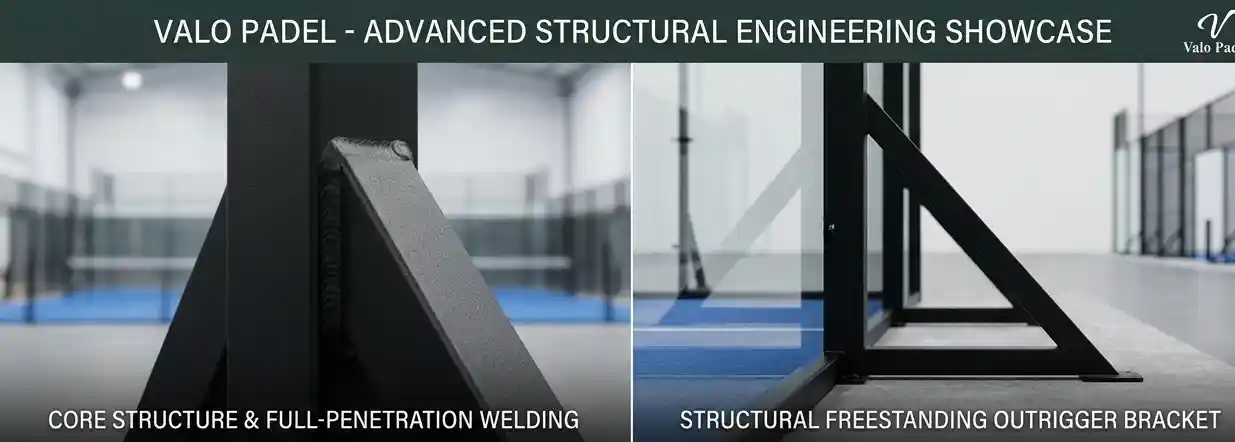

Outrigger stability
External bracket geometry supports self-standing performance and controlled load distribution.
03
Reversible deployment
Designed for projects where future relocation, temporary activation, or lease constraints matter.
Versatility showcase
A court for places where drilling is not an option.

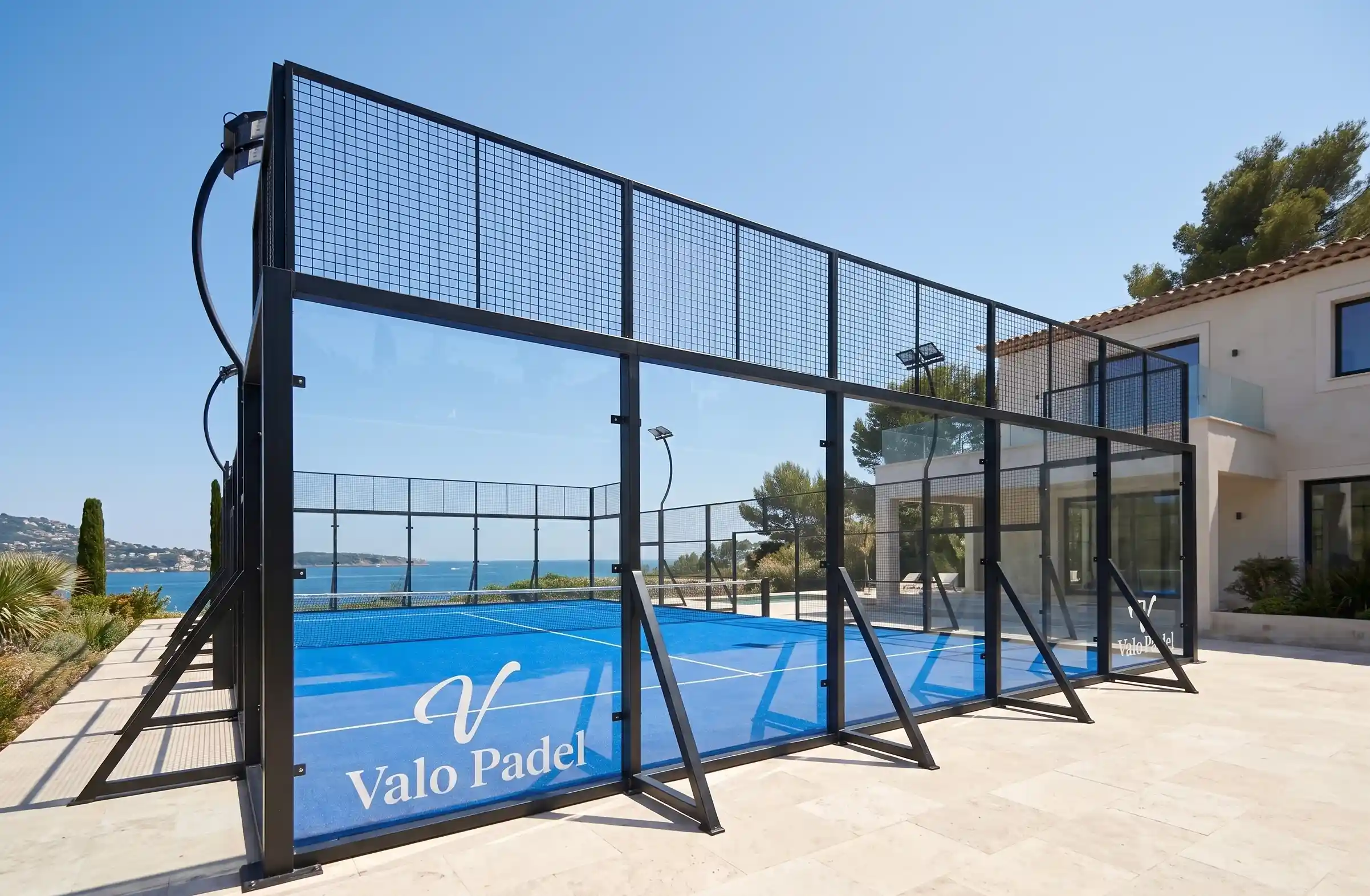

Luxury resorts
Premium sport without permanent intrusion.
A refined solution for resorts, private estates, and hospitality properties where guest experience and surface protection carry equal weight.

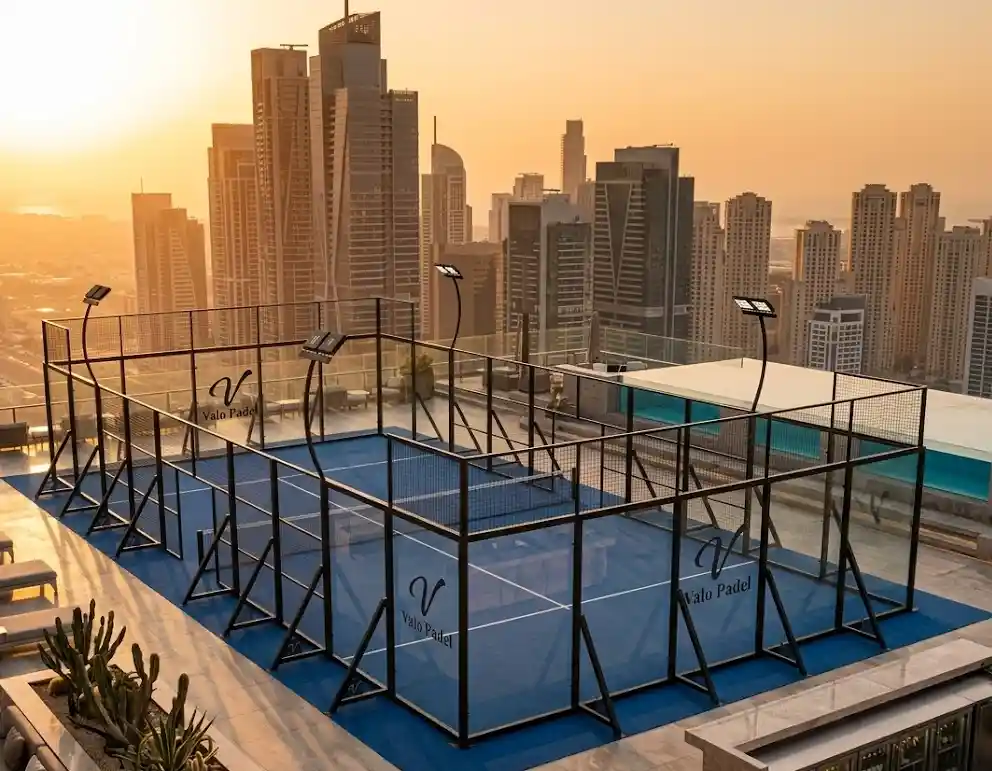

Rooftop clubs
A serious court above the city.
Self-supporting geometry makes rooftop concepts more practical where slab penetration, waterproofing, and approvals are sensitive.

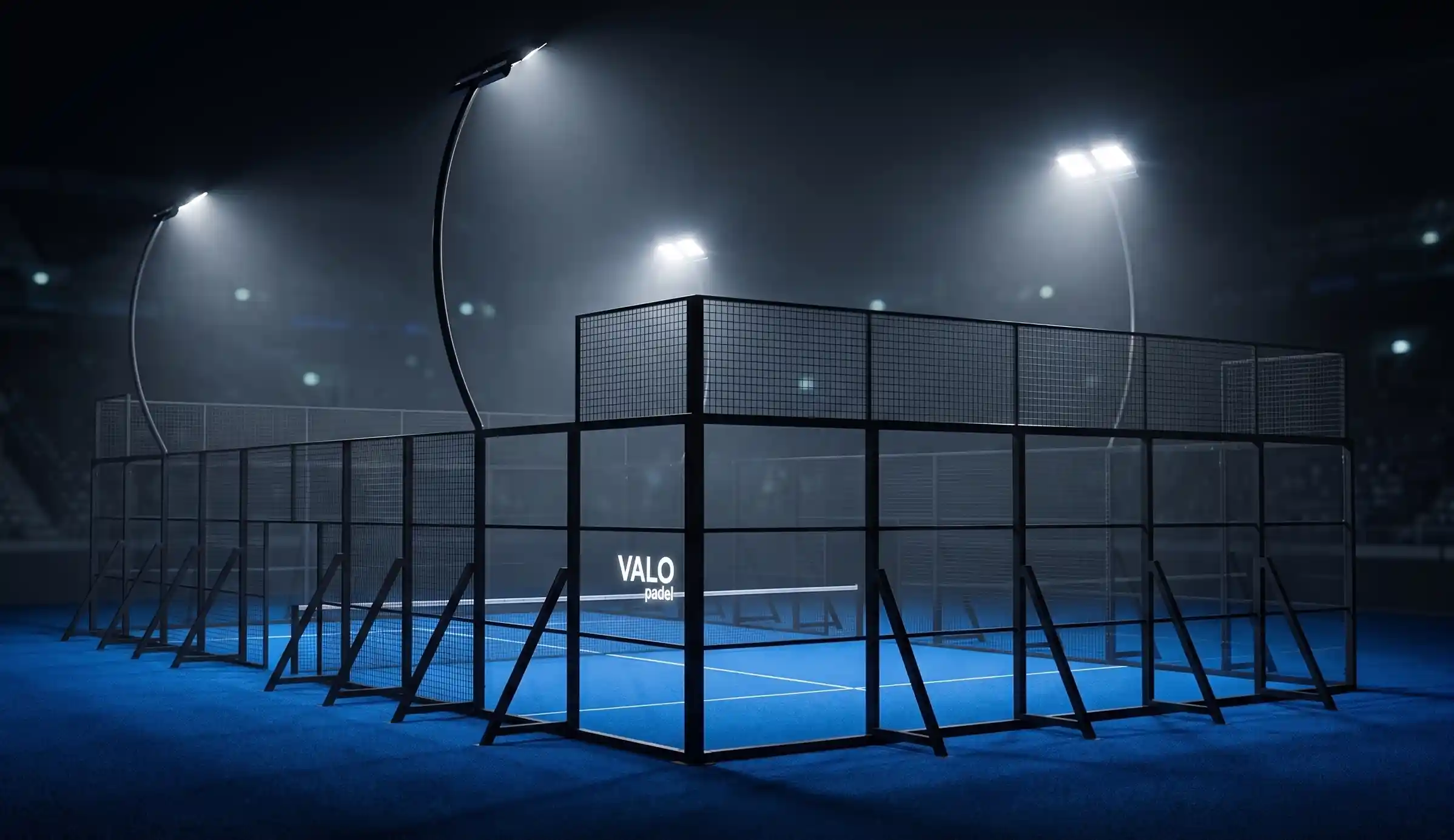

Temporary events
Install, activate, relocate.
A disciplined platform for seasonal venues, brand activations, exhibition events, and non-permanent sports infrastructure.

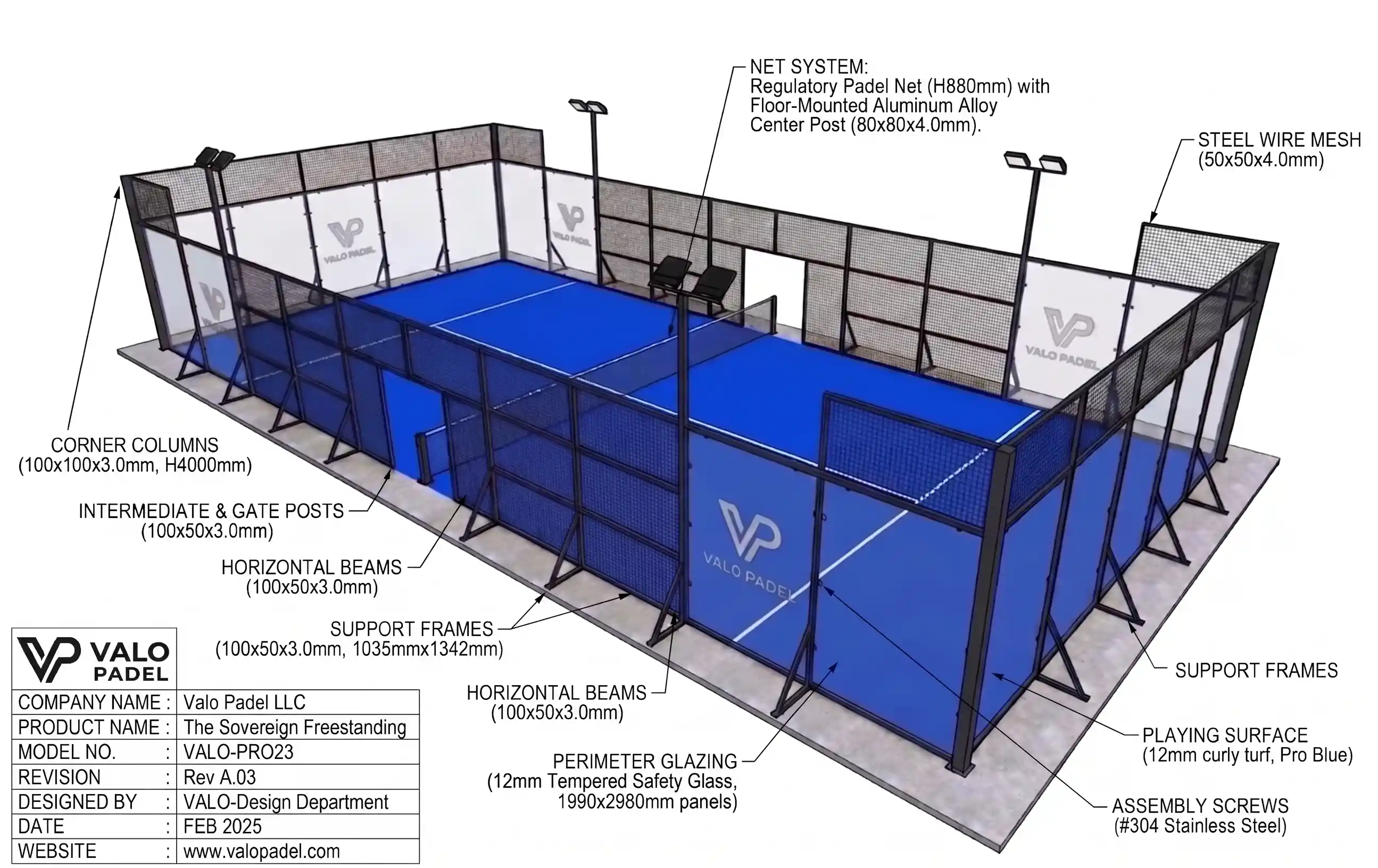

Structural Blueprint
Precision down to the millimeter.
Manufacturing discipline
Engineering commitment shown through physical specifications.
Commercial-grade engineering data
Technical Specifications Matrix
The essential structural baseline for procurement teams, architects, and venue operators evaluating international deployment.
Main Steel Structure
Q235 hot-dip galvanized steel; corner columns 100 x 100 x 3.0mm, side columns 100 x 50 x 3.0mm, height 4000mm, integrated with 24 freestanding outriggers.
Anti-Corrosion Process
Hot-dip galvanization, intensive shot blasting, and imported electrostatic polyester powder coating.
Glass System
18 panels of 12mm tempered safety glass.
Mesh / Fence
Q235 hot-dip galvanized steel mesh, 50 x 50mm aperture, 4.0mm wire diameter.
Lighting
8 x 200W anti-glare LED fixtures with Philips core chips and 5700K color temperature.
Turf System
12mm professional texturized turf, 40,000 clusters/sqm, engineered for stable silica-sand retention.

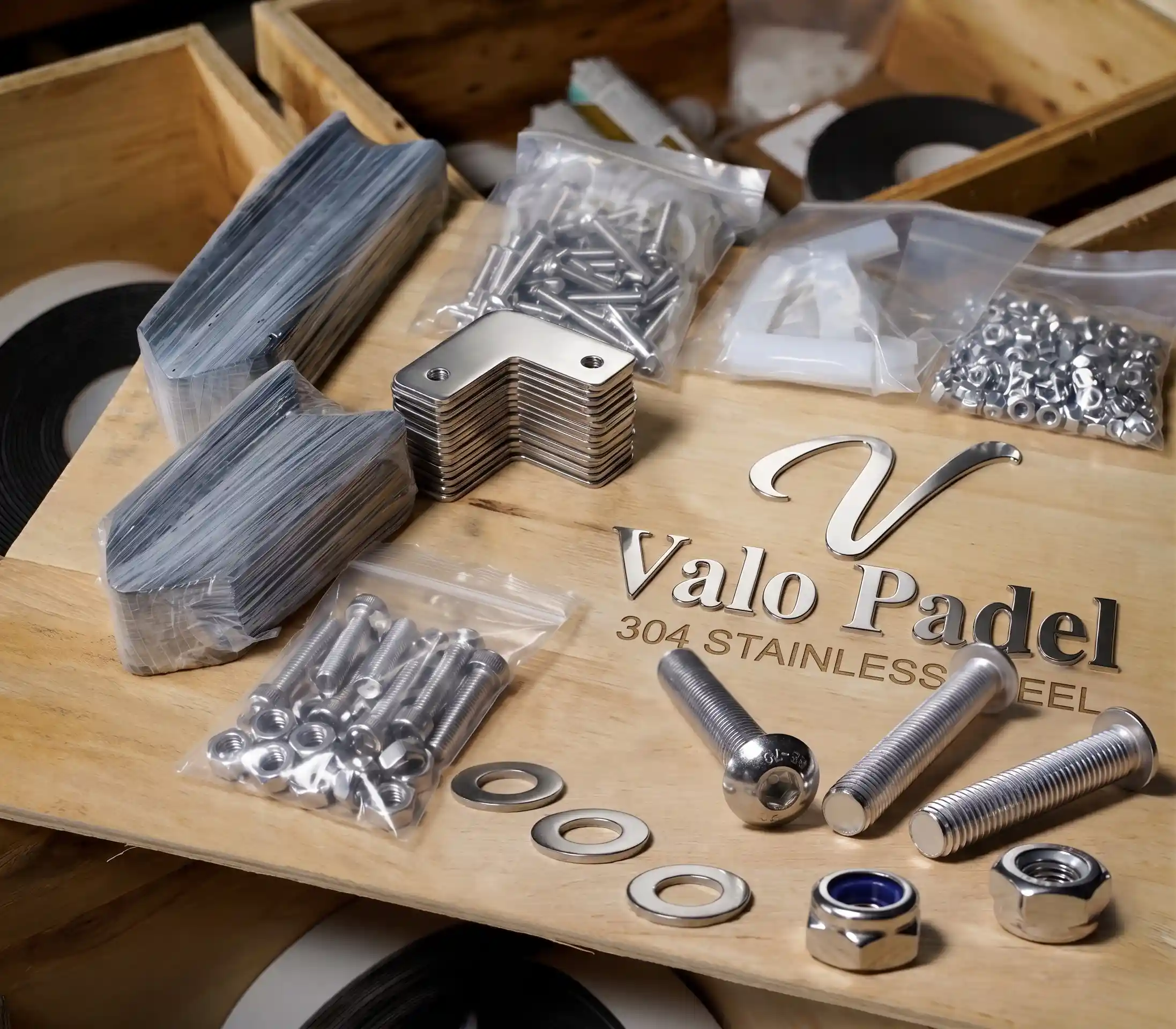

Hardware

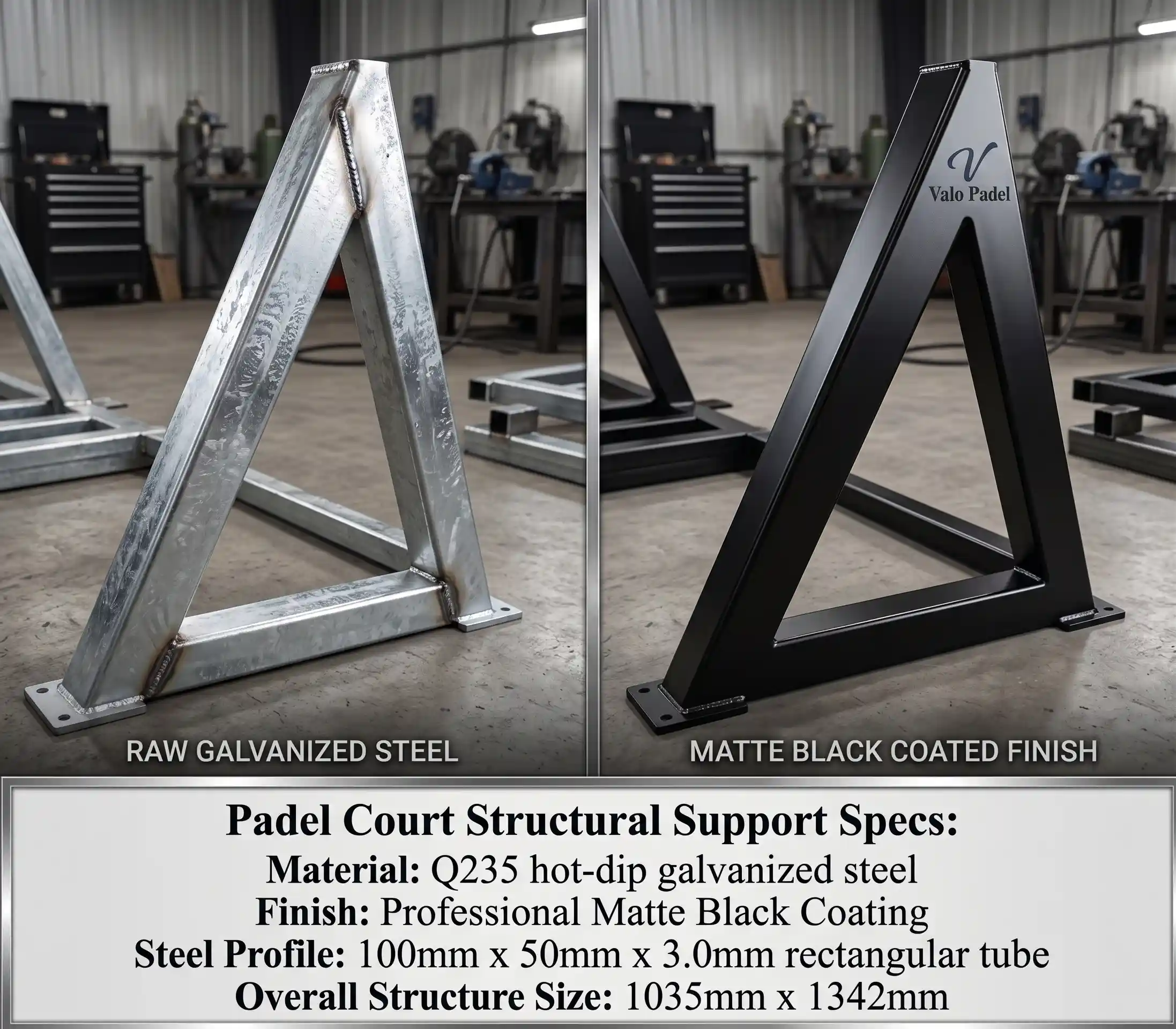

24 Q235 heavy-duty outrigger brackets, 1035 x 1342mm, tube 100 x 50 x 3.0mm; 304 stainless steel glass accessories.

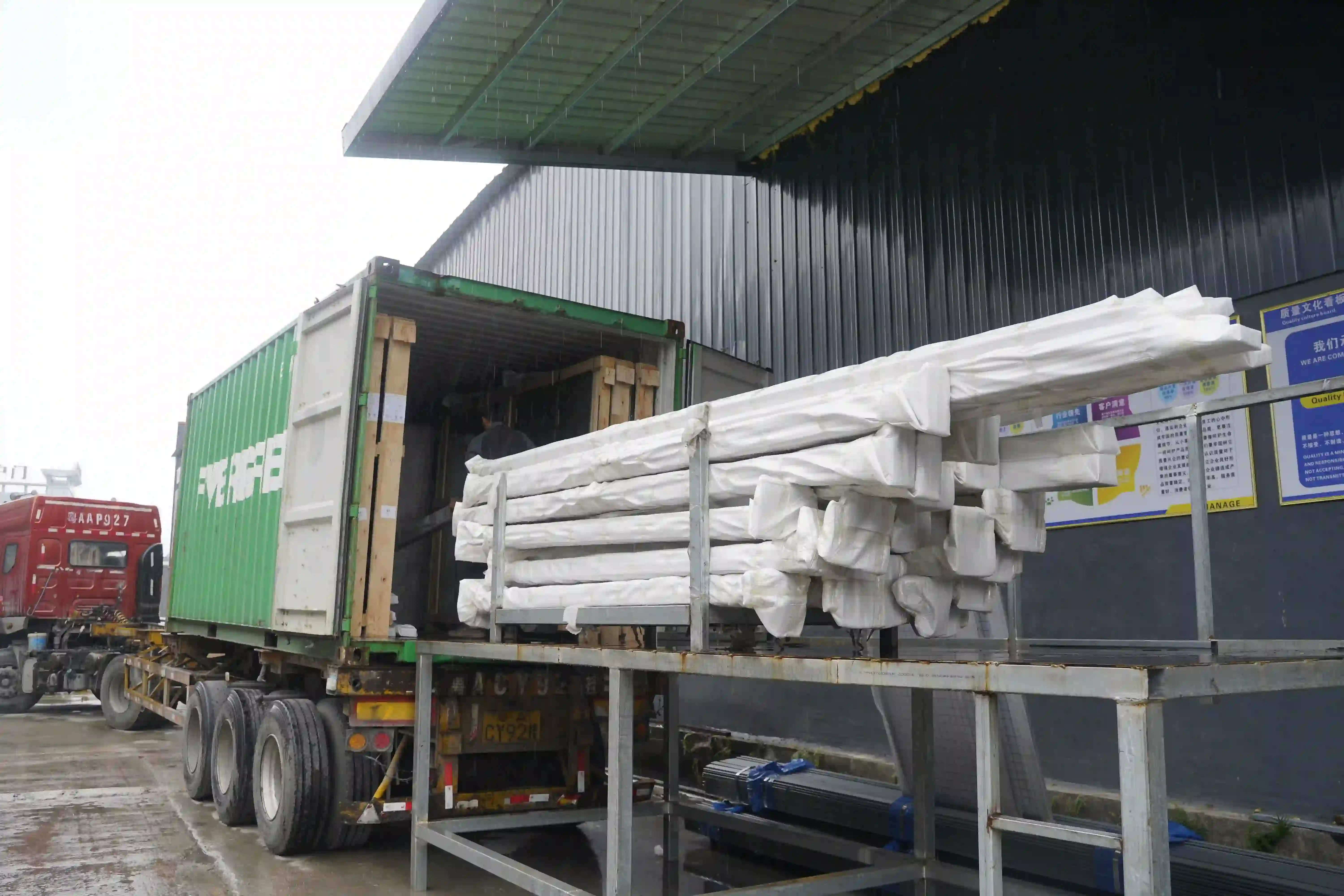

Global logistics & factory link
Export-ready for global deployment.
Through our deep strategic collaboration with a experienced Foshan manufacturing base, Valo Padel supports strict quality control, reinforced export packaging, containerized logistics, and CE/EN-oriented documentation for international projects.
Deployment assurance
CE
Certification support
EN
European standard alignment
40HQ
Container loading planning
QC
Factory quality control
